• N Series

    3 N Series Models: N316, N516, N530
› ‹
  • 1

nseries

N Series Specifications

Travel
N316
N516
N530
X Axis (mm)
  1400  2580  3000
Y Axis (mm)  620  620  820
Z Axis (mm) 820  820  820
U Axis (mm)
1400 2580 3000
Axis Data

Feed Rate X,Y,Z  (m/min)
    40-25-25
Feed Rate A1,A11  (rpm) 160
Feed Rate C  (rpm) 11
Measuring System (Heidenhain)
   Absolute

N Series Description

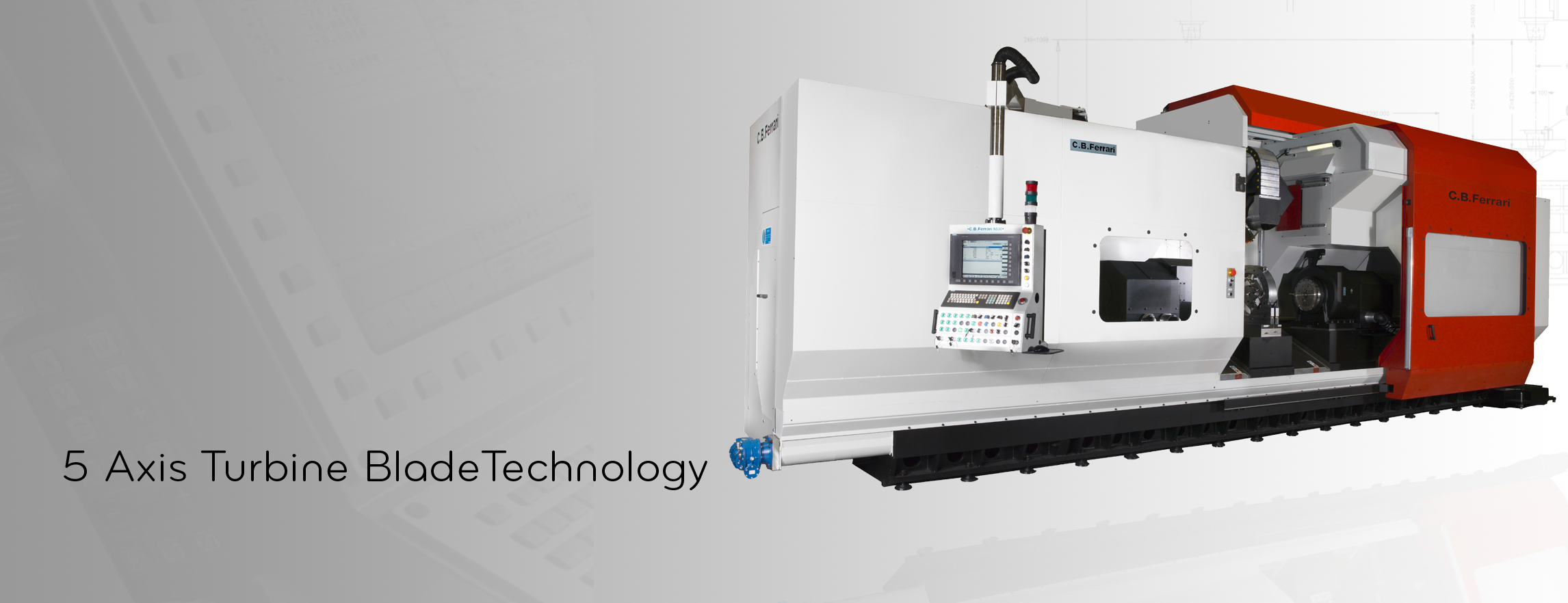

The N Series machines concentrate on oversized turbine blade manufacturing.  The 2 synchronized axis, tilting head and optional center support enable to machine entire airfoil in one setup.  The U axis is perfect for the company that manufactures blades of multiple sizes.


Control Options



controls



Siemens           840D sl

Heidenhain      iTNC 530

Table and Axis Configurations

  • Single Axis Dividing Head (right)
  • Movable Single Axis Dividing Head (left)
  • Steady Rest  (middle)

N Series Options



Spindle s



 Speed
Taper
Power
20000 RPM
ISO V 40 / HSK A63
 28 kW
16000 RPM
ISO V40 / HSK A63
 33 kW
16000 RPM HSK A63 53 / 64 kW
12000 RPM ISO V50
 53 / 64 kW
6500 RPM
ISO V50 41 / 45 kW









Applications


Aerospace

Being an active part in the aviation industry we provide state of the art technology and advanced machining solutions.

Energy

We developed a large range of machines with the intent of processing various types and sizes blades and vanes.

Mold

Our original industry, C.B. Ferrari constantly innovates and holds the bar to the highest standards.

Precision Components

With our overall experience spanning all fields, C.B. Ferrari is the perfect machine for all fields requiring high accuracy and…
  • 1

About us

C.B. Ferrari machines are utilized by the world’s most advanced manufacturing companies for highly complex and precise component machining.  With over 4500 machines servicing the aerospace, energy, mold and precision machining industries, C.B Ferrari is a proven technological leader with its 5 axis milling and laser machines.
