• D Series

    4 D Series Models: D230, D420, D422, D430, D4322
› ‹
  • 1

D Series

D Series Specifications

Travel
D230
D420
D422
D430
D432
X Axis (mm)
  1600  2000  2000 3000 3000
Y Axis (mm)  1600  1600  2200 1600 2200
Z Axis (mm) 820  820  820 820 820
Z Axis (mm) option
 - 1000 1000 1000 1000
Axis Data

Feed Rate X,Y,Z  (m/min)
    40-40-40
Measuring System (Heidenhain)
   Absolute

D Series Description

The D series models can be equipped with a wide range of electro-spindles and axis configurations. The newest option is a Bi-Directional Spindle head. Designed with a mobile column, this machine is built to meet the high demands of the most advanced machining strategies.  There are 5 different models that can be equipped to fit any production needs.


Control Options



controls



Siemens           840D sl

Heidenhain      iTNC 530

Table and Axis Configurations

  • Fixed  Table
  • One Fixed Table  and One Rotary Axis (table left)
  • Two Fixed Tables and One Rotary Axis (table left and right)
  • Continuous C Axis for Spindle
  • Dual Axis Spindle Head

D Series Options

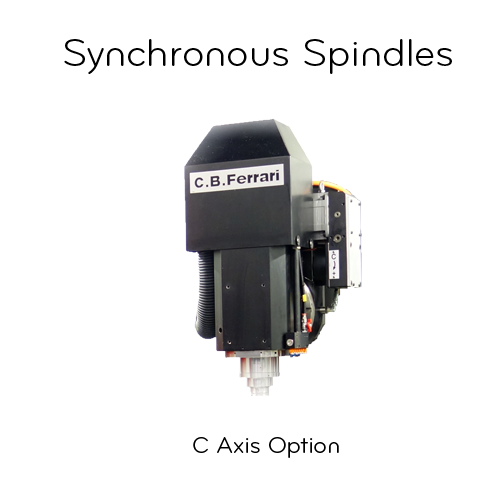

Spindle s



 Speed
Taper
Power
20000 RPM
ISO V 40 / HSK A63
 28 kW
16000 RPM
ISO V40 / HSK A63
 33 kW
16000 RPM HSK A63 53 / 64 kW
12000 RPM ISO V50
 53 / 64 kW
9000 RPM
ISO V50 41 / 45 kW

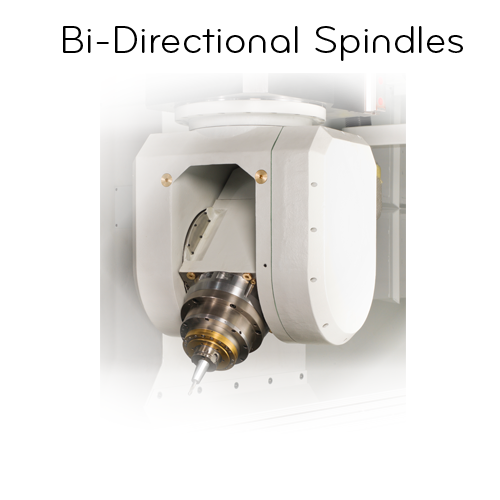

Spindle Bi
Speed
Power
Taper
20000 RPM 50 kW
HSK A63

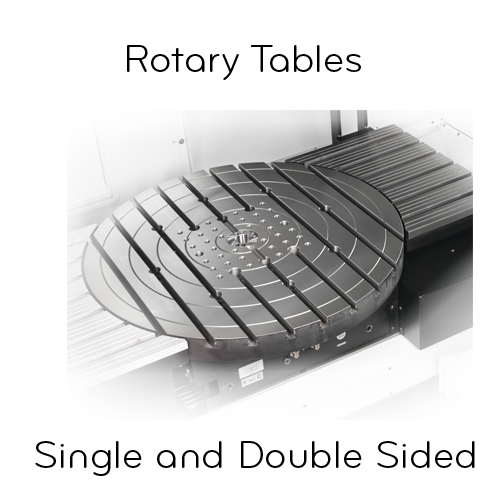

D table
Speed
Torque
Dia
Max Weight
A 8 RPM A 2200 Nm  Ø100mm 3200 kg

Applications


Aerospace

Being an active part in the aviation industry we provide state of the art technology and advanced machining solutions.

Energy

We developed a large range of machines with the intent of processing various types and sizes blades and vanes.

Mold

Our original industry, C.B. Ferrari constantly innovates and holds the bar to the highest standards.

Precision Components

With our overall experience spanning all fields, C.B. Ferrari is the perfect machine for all fields requiring high accuracy and…
