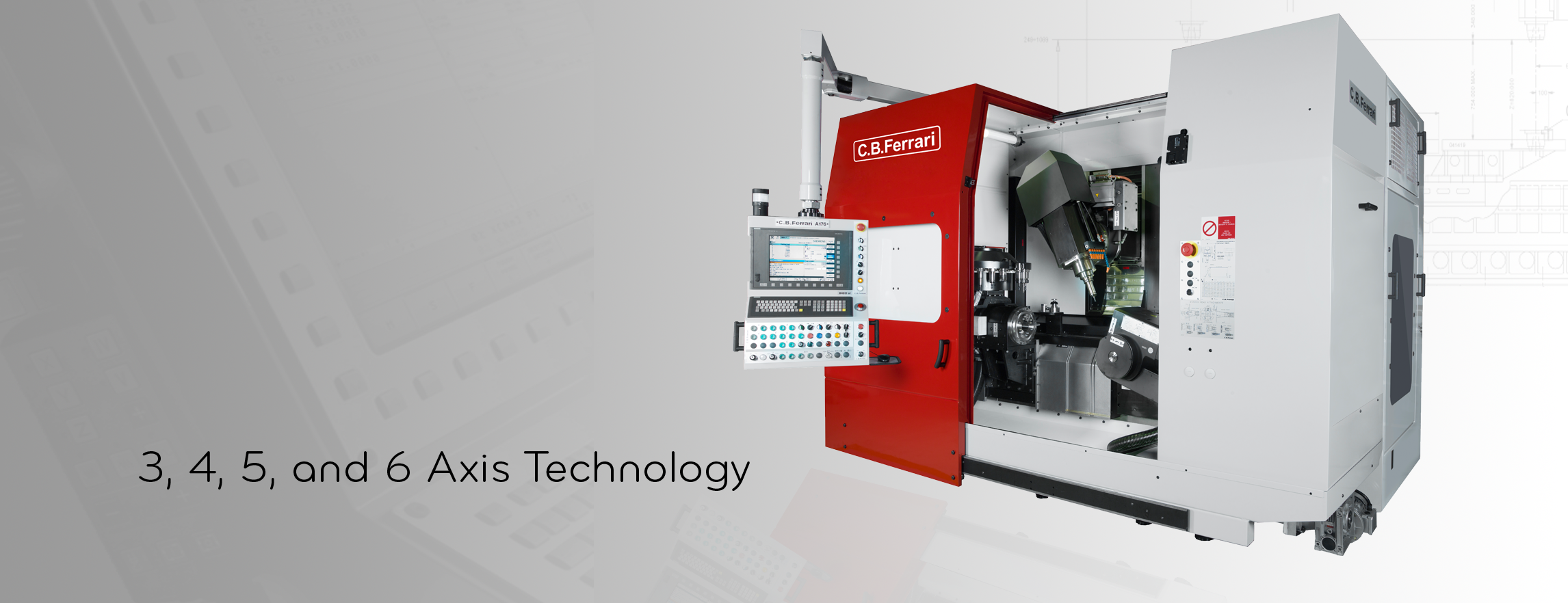

• A Series

    3 Models A156 A179 A196
› ‹
  • 1

A Series

A Series Specifications

Travel
A156
A176
A196
X Axis (mm)
  850  1050  1620
Y Axis (mm)  520  520  520
Z Axis (mm) 420  420  420
Axis Data

Feed Rate X,Y,Z  (m/min)
    40-40-30
Feed Rate X,Y,Z  (m/min) option    48-48-45
Measuring System
   Absolute

A Series Description

The A series models are offered in 3 different X axis travel lengths. This design makes it ideal  to fit most turbine blade lengths.  The two synchronized axis, tilting head and vertical table enable the customer to machine the entire airfoil in one setup.  Equipped with a programmable U axis, these machines can be quickly set up to produce turbine blades of various different lengths. The B axis table configuration and CAT50 taper makes these machines perfect for any tooling and complex parts.
.

Control Options



controls



Siemens           840D sl

Heidenhain      iTNC 530

Table and Axis Configurations

  • Fixed Square Table
  • Single Axis Dividing Head (right)
  • 2 Axis Dividing Head (right)
  • Movable Single Axis Dividing Head (left)
  • Movable Tailstock (left)

A Series Options



Spindle s


 Speed

Taper
Power
40000 RPM
   HSK E40
 10/14 kW
28000 RPM
   HSK E40 25.5/32.5 kW
24000 RPM
  ISO V40 / IHSK A63
30 kW
20000 RPM
  ISO V 40 / HSK A63
 28 kW
16000 RPM
  ISO V40 / HSK A63
 33 /52 kW
9000 RPM
  ISO V40 / HSK A63
 31/42 kW





a11
Speed
Torque
Taper

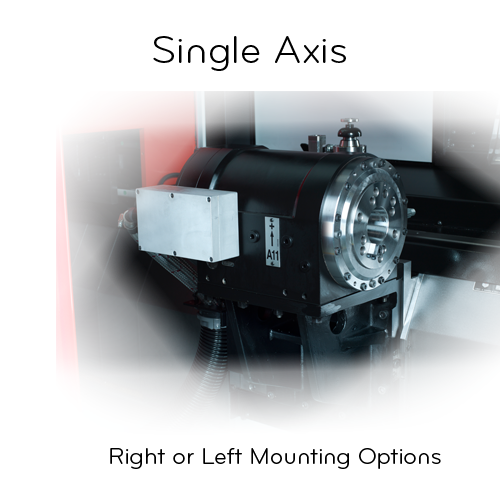

A 200 RPM 300 / 500 Nm ISO 50
A 200 RPM 300 / 500 Nm Ø 100 mm
ab
Speed
Torque
Speed
Torque
Taper

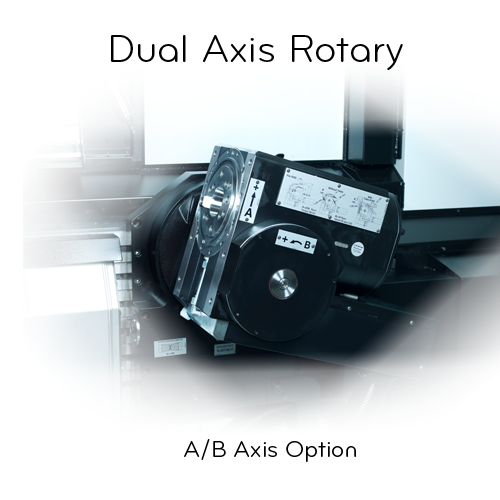

A 200 RPM A 300 Nm  B 10 RPM B 1400 Nm ISO 50
A 200 RPM A 300 Nm B 10 RPM B 1400 Nm Ø 100 mm
A 200 RPM A 300 Nm B Index B= 0º / 45º / 90º ISO 50
A 200 RPM A 300 Nm B Index B= 0º / 45º / 90º Ø 100 mm

About us

C.B. Ferrari machines are utilized by the world’s most advanced manufacturing companies for highly complex and precise component machining.  With over 4500 machines servicing the aerospace, energy, mold and precision machining industries, C.B Ferrari is a proven technological leader with its 5 axis milling and laser machines.
